Designing interactions
Control states
- Consider using tooltips to inform users when a control is disabled, or hide them from the interface.
- Consider use cases for navigation through keyboard input, and ensure your functionality receives focused states when actively receiving input.
- Consider using pressed states for binary action controls, depicting the function is "active", such as toggle buttons.
Visual Cues
Use visual indicators to hint at ongoing interactions:
- Show the target of a drag and drop action, by blue lines in list views, or with blue background highlights in folder views.
- Highlight the applicable drop zones when the target area accepts the drop action. (eg, overlays, object pickers)
- Design interaction cues for the source , dragged item and target elements considering their environment.
Visual cues in UI Builder:
Overlays drop zone styling:
Rounded corners
The Editor interface utilizes rounded corners to hint at interactiveness, with most controls and containers.
Rounded corners should be used sparingly, and be reserved for interactive elements - instead of paneling or containers.
Element containers
Placing your elements in containers will hint at interactiveness, such as click or drag actions.
Do not place static elements, such as status tags or read-only elements in containers.
Underlining
Blue link labels are reserved for directing users out of the editor. These links are underlined on hover to reduce clutter in windows with a lot of external links.
Do not use underlined links as a default/idle state.
Hiding versus disabling elements
When a control is disabled, it is slightly transparent and stops receiving input. When a control is hidden, it is no longer in the interface.
When should the controls be disabled:
- If the input value of a control is relevant, but not editable, the control should be disabled. For example, a control whose value is automatically determined under some condition should appear disabled if its value might still be used by the component or some other system,
- If the control is available under normal circumstances, but isn’t available right now due to an error or event, disable the control to indicate that it exists, but it is disabled. Provide a tooltip explaining the reason for the disabled status.
When should the controls be hidden:
- If a control is only active in very rare circumstances, it should be hidden. Don’t show the user a control that can’t be used in most cases,
- Hide input controls (e.g., Text Fields, Color Fields or Popups) when the value shown is currently irrelevant and not used,
- Buttons should never be hidden, because there is an expectation of persistence for them,
- When you are hiding controls based on the value of another control, always place the hidden control somewhere below the control that triggers the hiding. Ideally, the hidden control should be on the next line.
Invalid entry
Input / Numeric fields
When a value that is invalid for the property is entered, input field disallows the input and reverts to last valid value entered.
Control interaction states
Control interaction states are the visual representations of interactive controls in the Unity Editor.
State Variables
Most interaction pseudo-states are implemented using color variables so they can be easily changed.
For example, when you see a variable name with the hover pseudo-state, it means Unity uses the variable in styles that affect elements when a user hovers the mouse pointer over them.
Example: --unity-colors-toolbar_button-text-hover
A variable name can have more than one pseudo-state. Multiple pseudo-states appear in alphabetical order, separated by underscores.
Example: --unity-colors-toolbar_button-text-focus_selected
Unity variable names can have any combination of the following pseudo-states:
Hover state
A hover state communicates when the cursor is paused over an interactive element.
- Example variable --unity-colors-toolbar_button-text-hover
- Hover states are visually indicated by lighter fill colors in action controls, and lighter border colors in input controls,
- Hover states can be combined with focus, checked, pressed, or selected states
- Visual elements can display a tooltip on hover state by using the .tooltip property
Focus state
A focus state communicates when an interactive element is highlighted via a mouse click or keyboard.
- Example variable --unity-colors-button-background-focus
- In most cases, focused elements are highlighted in blue. The use of blue in the Unity Editor is reserved for controls that can be focused, pressed or selected
- Focus states can be hovered
- Focused controls can receive keyboard inputs
Disabled state
A disabled state communicates an element is not interactive and not accepting user input.
- Example variable --unity-colors-slider_groove-background-disabled
- In most cases, disabled elements have a 40% alpha value, including their contents such as labels and icons.
- Disabled states do not accept user input
- Provide help boxes to give more context about why a controls is disabled. See help boxes and errors & messaging for more information
Checked (on/off) states
Binary controls like toggles, and passive input controls can be checked to communicate their on / off status.
- Example variable --unity-colors-toolbar_button-background-checked
- Checked states are used to communicate the active option from a binary set,
- Checked states are reserved to be used for on / off inputs. Use pressed state to communicate when a control is active.
- Input controls can represent checked state with icon change (toggles)

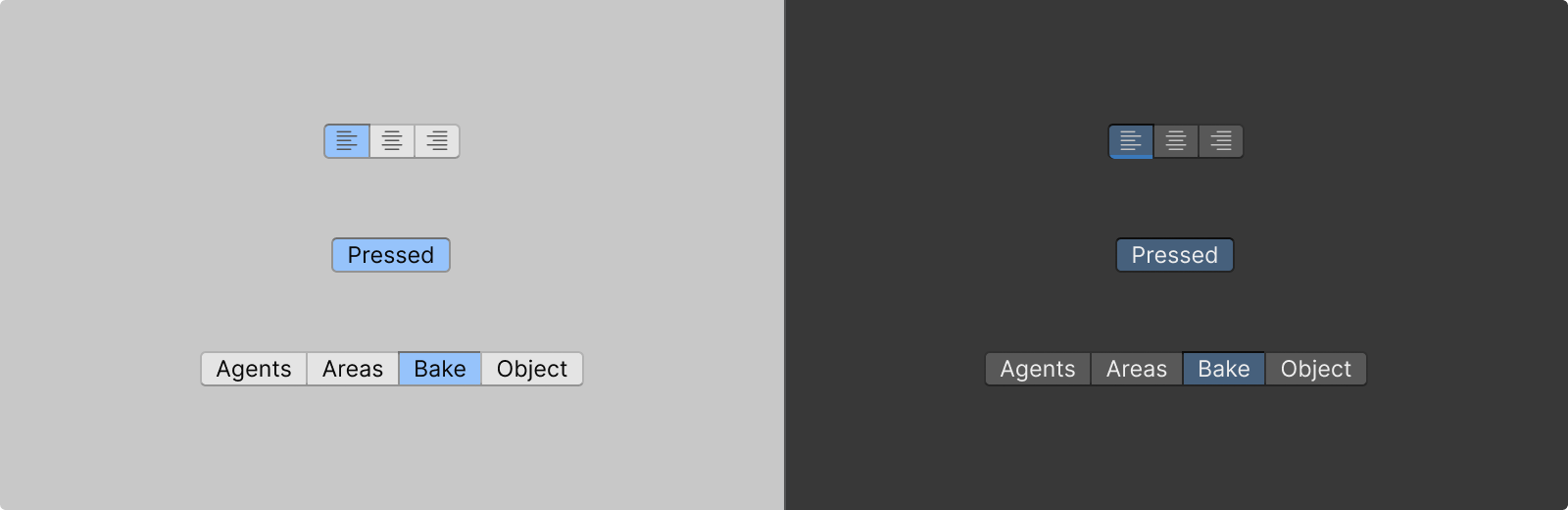

Pressed (active) state
A pressed state communicates when a control is pressed and active (eg. buttons, toggle buttons)
- Example variable --unity-colors-button-background-pressed
- Pressed states are visually indicated by blue highlight fill colors and can be emphasized by border colors.
Highlighted (selected) state
Highlighted parts of the UI. For example, text selections, or selected items in list views or tree views.
- More than one highlighted state can be present at a time,
- Highlighted states can often be dragged,
- Example variable --unity-colors-highlight-background
Interaction Methods
The Unity Editor allows the standard desktop interaction methods across the native interfaces.
Input devices to consider:
- Mouse
- Keyboard
- Screen readers
Right-click
Most Unity Editor windows support right-click actions.
Throughout the Editor, right-click is reserved for opening context menus. Context menus are dependent on the clicked element, and can show various options based on the workflow.
Drag and drop
Drag and drop interactions allow users to add, duplicate, move and reorder content within the Editor windows, and assign and reorder objects and assets to certain controls.
Adding
Users can add assets and controls to panels or canvases, by dragging them from the source and dropping in the target.
Note that the mouse cursor changes to “Copy cursor" while adding an item.
For example, Project window allows users to add an asset by dragging and dropping it into the target folder.
UI Builder also allows dragging a control from the UI Builder library into the Viewport or the Hierarchy windows.
Duplicating
Similar to adding, users can duplicate (copy) assets by holding ALT and dragging the asset from the source and dropping in the target. Both dragged item and the target are highlighted while dragging.
Note that the mouse cursor changes to “Copy cursor" while adding an item.
Moving tree view items
Tree view allows users to:
- Reorder an item in its own hierarchy by dragging vertically,
- Move an item in or out of a parent item or folder by dragging horizontally towards nesting target,
- View the target hierarchy with a blue circle at the beginning of the drop line.
Assigning objects
To assign a reference to a property, drag and drop a compatible GameObject or Asset onto the property field in the object field control.
Overlay positioning
Overlays can float freely or be dragged to dock on the edges or corner of their parent windows. A container’s position is adjusted by using the dragger.
- Target drop zone: While dragging a container, the target drop zone shows where the container can be docked by highlighting the target area
- Ghost drop zone: While dragging a docked container, the ghost drop zone shows where the container currently is by highlighting the shape of the container in its current location
The shapes of target and ghost drop zones are displayed differently depending on the location of the overlay container / target.
- Corner drop zone: Corner drop zones are used to highlight corners of the window where a container can be docked; they appear as a square blue layer in the corner of the container the overlay is being dragged into
- Edge drop zone: Edge drop zones are used to highlight edges of the window where a container can be docked. they appear as a thin blue layer along the edge of the container the overlay is being dragged into
- Toolbar drop zone: When a container is being dragged into a toolbar, the position of the target is highlighted within it
Resizing windows and panels
Throughout the Editor, default windows are resizable no matter if they are docked or not.
When building your feature, design your layout to adapt to various sizes.
Note that the mouse cursor changes to “resize cursor" while dragging the edges of the panel.
.png){kind=icon}
Mouse cursors
Unity Editor utilizes system-provided cursors. Avoid introducing custom cursors, unless your feature demands it.
Keyboarding
In the context of accessibility, the term “keyboarding” refers to the ability to navigate a user interface entirely by keyboard. It should be possible to access all areas of the user interface through keyboarding without the need for special knowledge of shortcuts or hotkeys.
Do:
- Ensure all elements are accessible via keyboard.
- Ensure there is a full list of hotkeys available for users who want to perform more advanced tasks only using the keyboard.
- Ensure focus navigation happens in a logical order.
Don't:
- Do not allow areas of the user interface to be unreachable via the keyboard.
- Do not allow "keyboard traps" in the product where the tab order disappears or gets “stuck” and leaves users unable to move on to another focused element.
Common keyboard shortcuts:
- Tab Should move the user through the interface from top left to bottom right in a logical, predictable order; a proper indication should highlight the element in focus
- Shift + Tab Should reverse the direction of tabbing in the same logical order
- Ctrl + Tab Should move the user to the first open tab in each window group
- Spacebar Should expand dropdown menus, activate a button, check/uncheck a checkbox, or perform “click and hold”; in a page, the spacebar should scroll down a screen at a time
- Shift + Spacebar In a list, should scroll up a screen at a time
- Arrow keys should cycle through dropdown content; in a page, arrow keys should scroll in four directions
- Esc should close a dropdown menu or dismiss a dialog
- Enter or Return should activate a link or a button, or select an autocomplete option
